0717 Pressure plates for Sandwich Elements

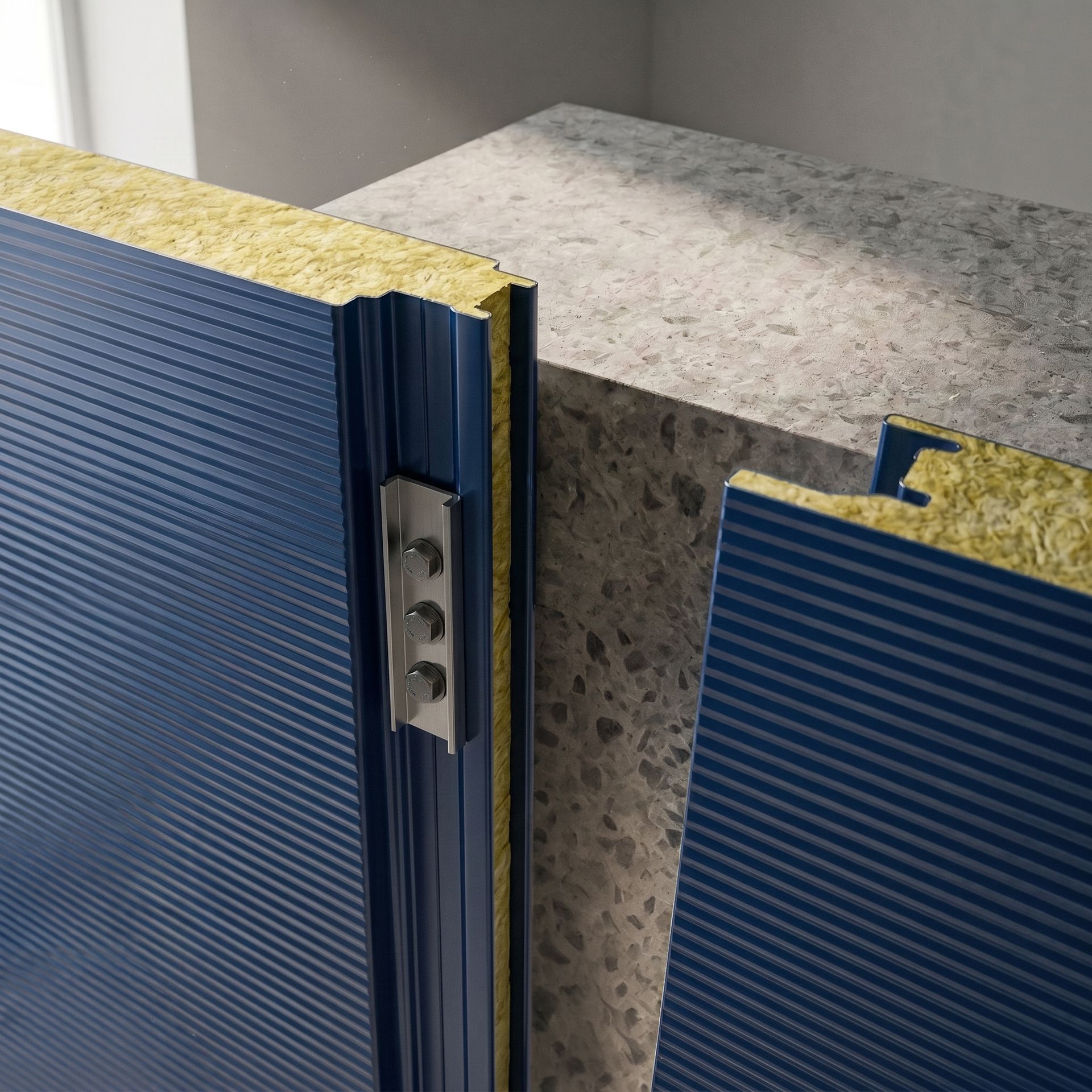

When invisibly securing sandwich panels, pressure plates are utilized to ensure a more even distribution of wind forces. This prevents deformation around the fastening points in the long run.
Can be used with
Product Information
Available Variants (8)
| Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Panel Producer | Panel | Material | F (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1008778 | 19.5 | 100 | 5 | 30 | 20 | Metecno | Hypertec/Superwall | Stainless steel A2 | |
| 1010387 | 22 | 200 | 7 | Kingspan | KS1000 FH | Stainless steel A2 | |||
| 1010478 | 34.5 | 300 | 9.8 | 130 | 40 | Fischer | Fireproof MW 120/1000 | Stainless steel A2 | 16 |
| 1010600 | 24.5 | 200 | 5.8 | 80 | 40 | Falk | FALK Gevel WB | Stainless steel A2 | 13.25 |
| 1012440 | 34.5 | 200 | 7.44 | 58 | 21 | AR-Panel | Stainless steel A2 | 14.2 | |
| 1013066 | 24 | 150 | 5.6 | 55 | 40 | Lattonedil | ISOPAR elegant | Stainless steel A2 | 9 |
| 1010694 | 24.5 | 200 | 5.8 | 80 | 40 | Gehard staal C1022 | 13.25 | ||
| 1011801 | 38 | 200 | 8 | 40 | 40 | Roma FV200 | Stainless steel A2 | 27 |
