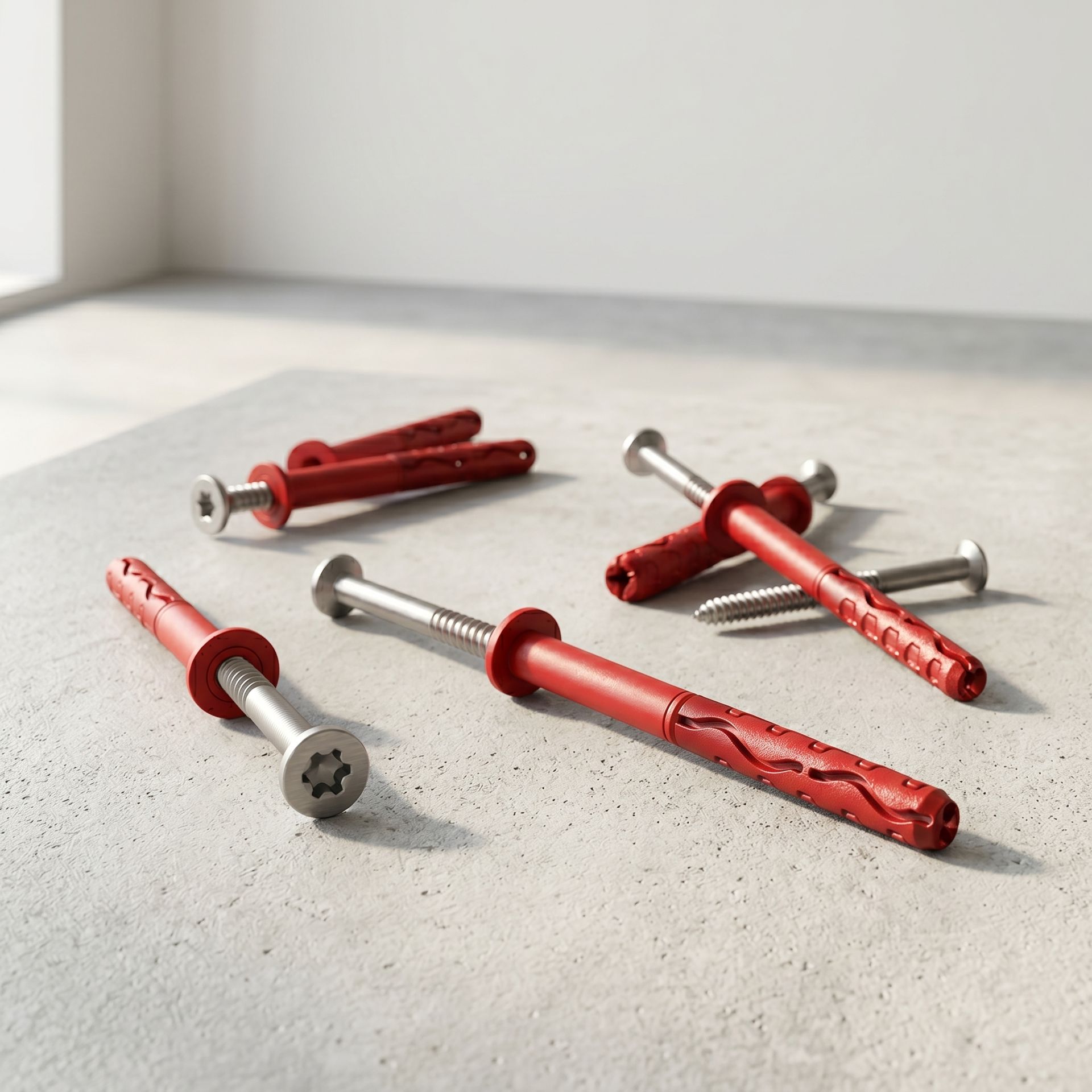

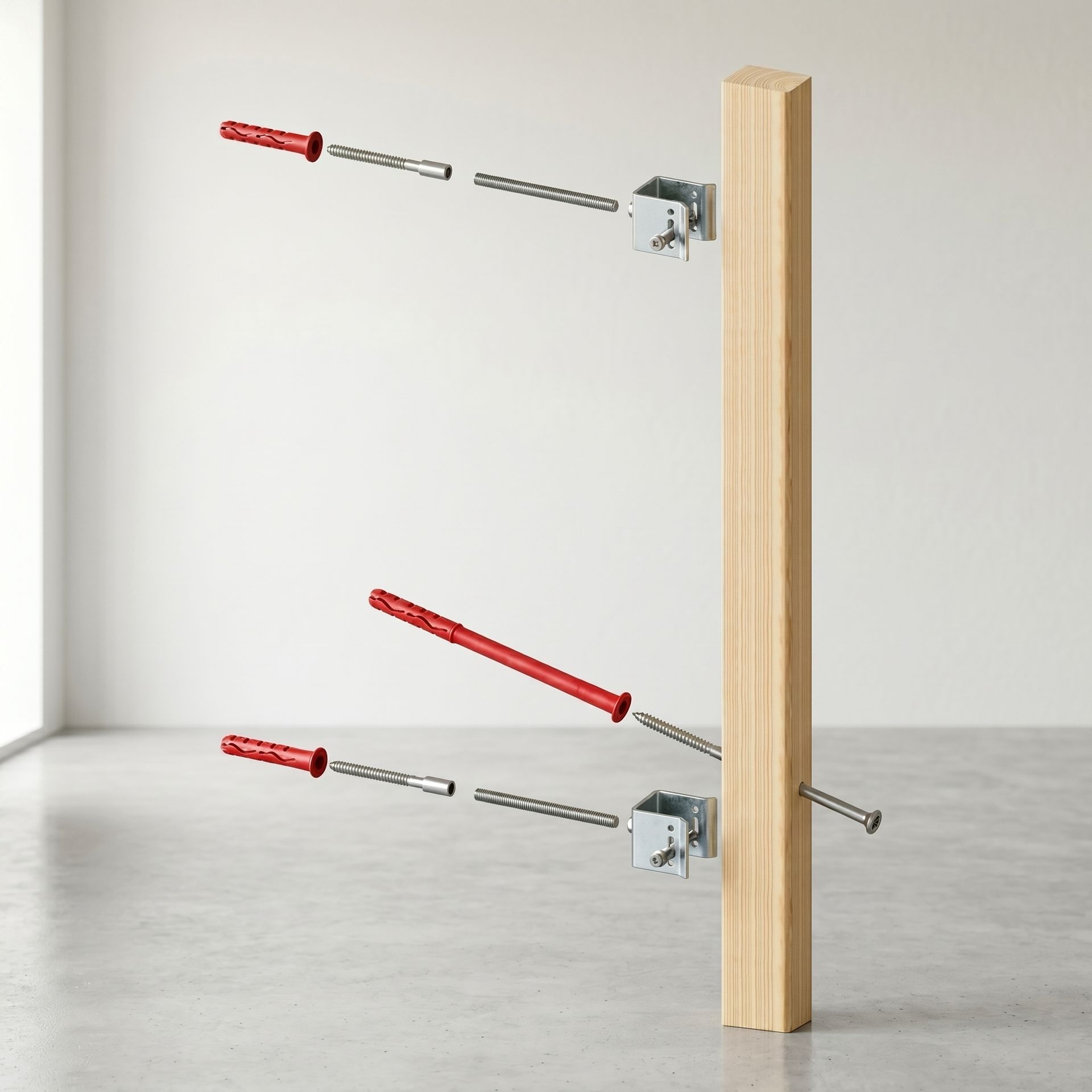

Our nylon plug with a special screw (countersunk head) provides a robust fastening solution for various construction materials, including concrete, brick, lime brick, and autoclaved aerated concrete (AAC). The screw features a countersunk head for a neat finish and secure installation. Crafted from high-quality nylon, this plug offers durability and reliability. Suitable for diverse construction applications, from concrete structures to masonry. Available in different sizes for optimal adaptation to your project.
| Diameter (mm) | Length (mm) | A (mm) | B (mm) | Clamp Thickness | Material |
|---|---|---|---|---|---|
| 8 | 80 | 8 | 90 | 10 | Gehard staal C1022 |
| 8 | 100 | 8 | 110 | 30 | Gehard staal C1022 |
| 8 | 120 | 8 | 130 | 50 | Gehard staal C1022 |
| 8 | 140 | 8 | 150 | 70 | Gehard staal C1022 |
| 10 | 60 | 10 | 70 | 10 | Gehard staal C1022 |
| 10 | 80 | 10 | 90 | 30 | Gehard staal C1022 |
| 10 | 100 | 10 | 110 | 50 | Gehard staal C1022 |
| 10 | 120 | 10 | 130 | 70 | Gehard staal C1022 |
| 10 | 140 | 10 | 150 | 90 | Gehard staal C1022 |
| 10 | 160 | 10 | 170 | 110 | Gehard staal C1022 |
| 10 | 180 | 10 | 190 | 130 | Gehard staal C1022 |
| 10 | 200 | 10 | 210 | 150 | Gehard staal C1022 |
| 10 | 230 | 10 | 240 | 180 | Gehard staal C1022 |
| 10 | 260 | 10 | 270 | 210 | Gehard staal C1022 |
| 8 | 80 | 8 | 90 | 10 | Stainless steel A4 |
| 8 | 100 | 8 | 110 | 30 | Stainless steel A4 |
| 8 | 120 | 8 | 130 | 50 | Stainless steel A4 |
| 8 | 140 | 8 | 150 | 70 | Stainless steel A4 |
| 10 | 60 | 10 | 70 | 10 | Stainless steel A4 |
| 10 | 80 | 10 | 90 | 30 | Stainless steel A4 |
| 10 | 100 | 10 | 110 | 50 | Stainless steel A4 |
| 10 | 120 | 10 | 130 | 70 | Stainless steel A4 |
| 10 | 140 | 10 | 150 | 90 | Stainless steel A4 |
| 10 | 160 | 10 | 170 | 110 | Stainless steel A4 |
| 10 | 180 | 10 | 190 | 130 | Stainless steel A4 |
| 10 | 200 | 10 | 210 | 150 | Stainless steel A4 |
| 10 | 230 | 10 | 240 | 180 | Stainless steel A4 |
| 10 | 260 | 10 | 270 | 210 | Stainless steel A4 |
