Insulation concrete screw

Product Information

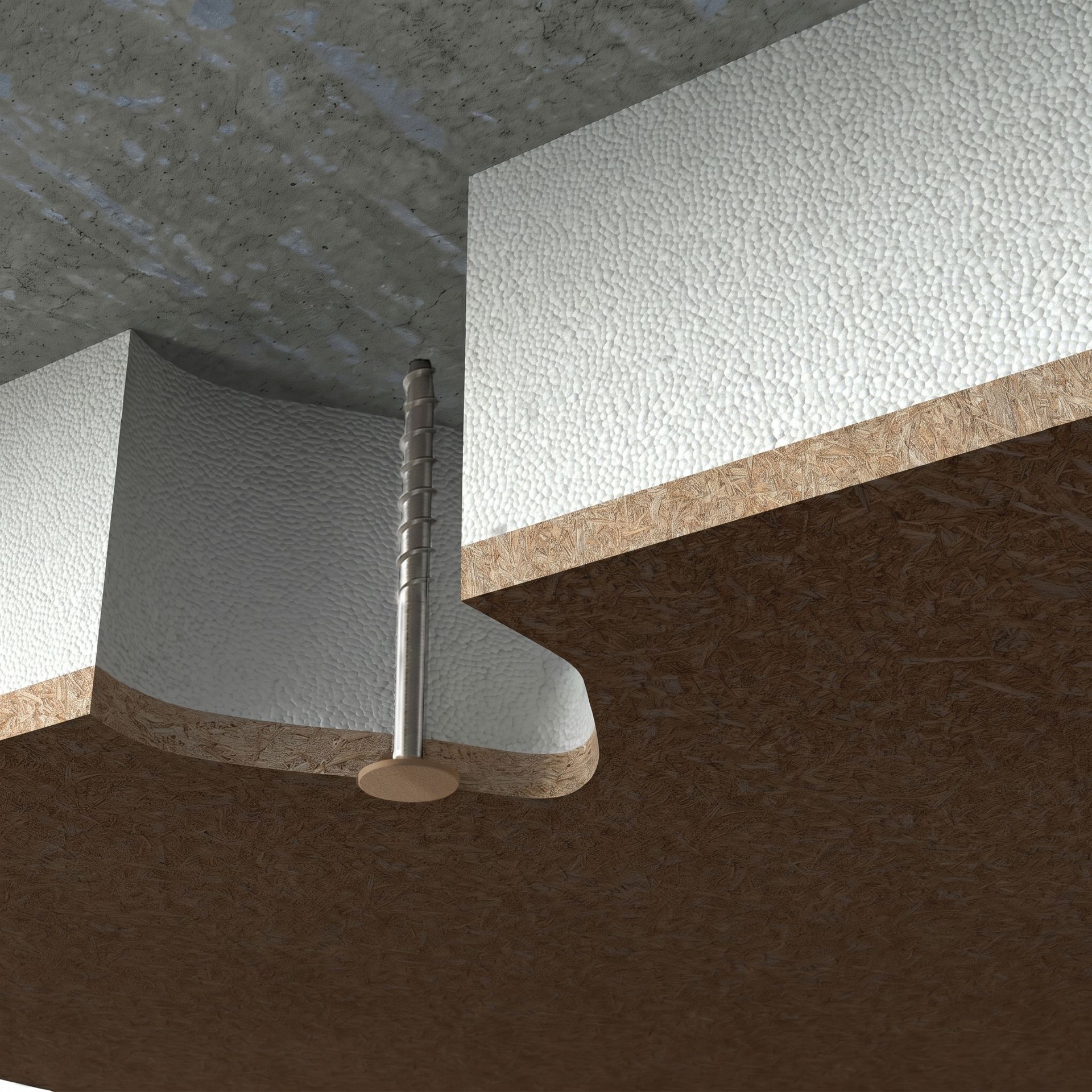

For the fixation for insulation on concrete. Installation is drilling and screwing. The screws are coming with a plastic injection moulded head with wood wool structure in colours RAL 9003, 1015 and 7042.

Available Variants (14)

Diameter (mm)	Length (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Head size
6	50	50	37	25	25	37
6	75	75	37	25	50	37
6	85	85	37	25	60	37
6	85	100	37	25	75	37
6	125	125	37	25	100	37
6	135	135	37	25	110	37
6	150	150	37	25	125	37
6	175	175	37	25	150	37
6	200	200	37	25	175	37
6	225	225	37	25	200	37
6	250	250	37	25	225	37
6	275	275	37	25	250	37
6	300	300	37	25	275	37
6	325	325	37	25	300	37
