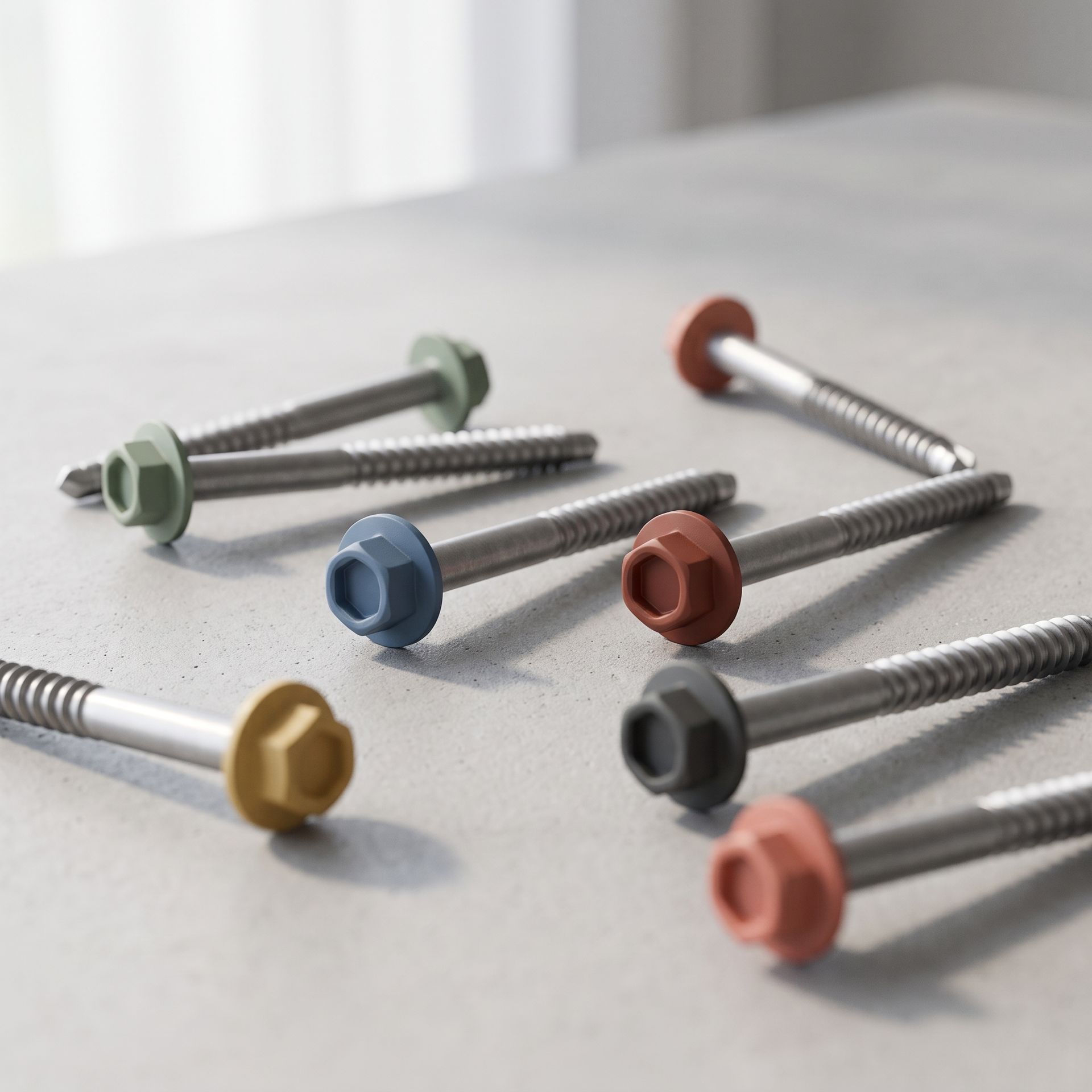

The drilling screw with a short drill point is an excellent choice for mounting profiles on sandwich panels, ideal for facade construction. This screw provides an efficient and stable solution, securely attaching the sandwich panels to the facade. For personalized expert advice on your facade construction project, our advisors are ready to assist. Contact us and discover how we can help you achieve a robust and sustainable facade construction.
| Diameter (mm) | Length (mm) | Clamp Thickness | Drilling capacity | Drill point | Head size | Material | Transmission |
|---|---|---|---|---|---|---|---|
| 5.5 | 100 | 56 - 66 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 80 | 66 - 76 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 90 | 76 - 86 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 100 | 86 - 96 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 110 | 96 - 106 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 120 | 106 - 116 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 130 | 116 - 126 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 140 | 126 - 136 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 150 | 136 - 146 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 160 | 146 - 156 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 170 | 156 - 166 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 180 | 166 - 176 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 190 | 176 - 186 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
| 6.3 | 200 | 186 - 196 | 2.0 - 3.0 | 2 | 5.16 | Stainless steel A2 with a steel drillpoint | Zeskant |
