0380 Drillmate

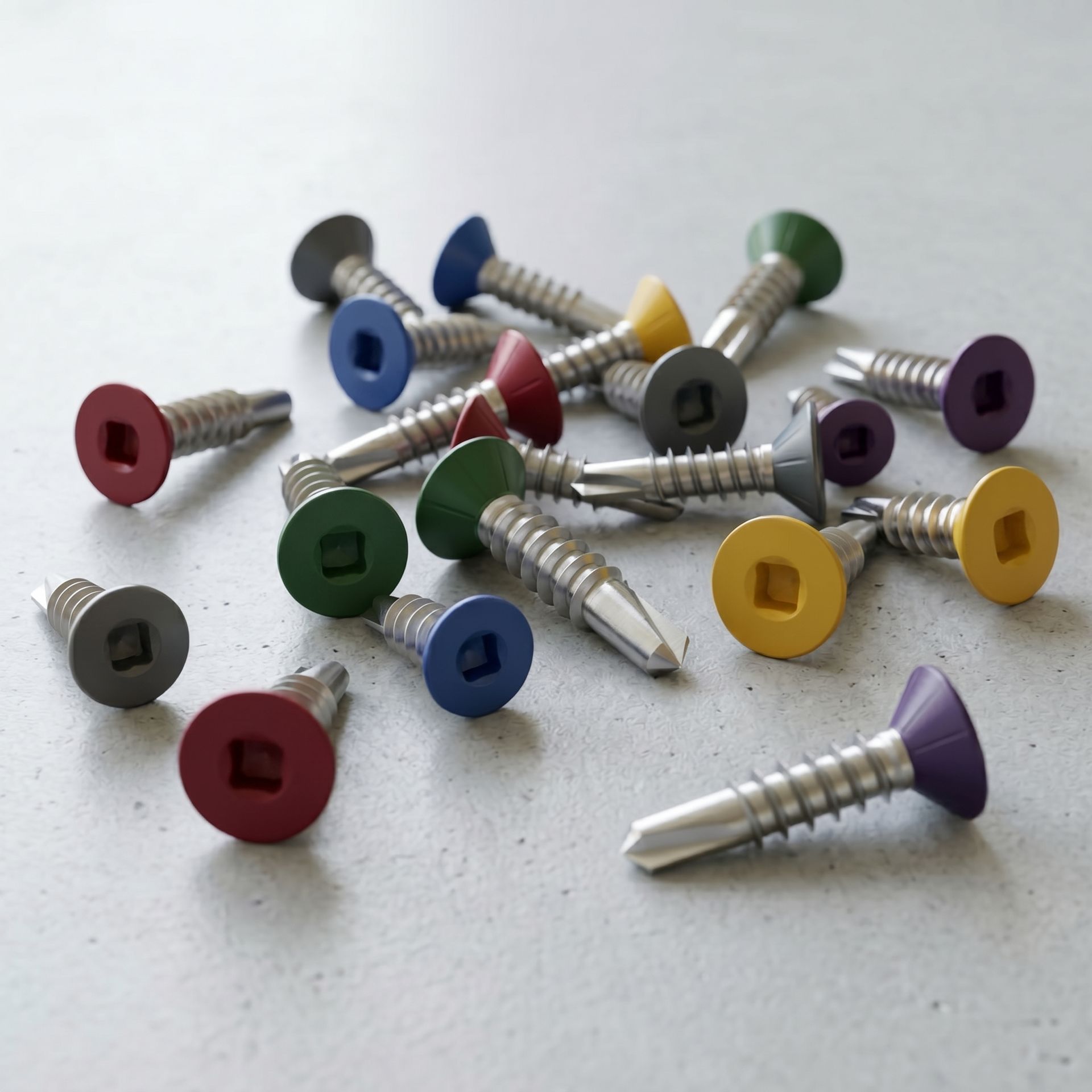

This self-drilling screw with countersunk head, compliant with DIN 7504 O/P and ISO 15482, provides an efficient and reliable fastening solution. The design of the countersunk head ensures a neat and clean finish, making this screw highly suitable for applications where aesthetics and precision are important.

Product Information

Available Variants (126)

Diameter (mm)	Length (mm)	Material	Drill point	Head size	Screw type	Substructure	Transmission
3.9	13	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	16	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	19	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	22	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	25	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	32	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	38	Stainless steel A2	2	1	Drill screw	Steel, Aluminium	SQDR
4.2	9.5	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	13	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	16	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	19	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	22	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	25	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	32	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	38	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	45	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	50	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	60	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	16	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	19	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	22	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	25	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	32	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	38	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	45	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	50	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	60	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	70	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	80	Stainless steel A2	2	2	Drill screw	Steel, Aluminium	SQDR
5.5	19	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	22	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	25	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	32	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	38	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	45	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
5.5	50	Gehard staal C1022	2	3	Drill screw	Steel, Aluminium	SQDR
3.9	13	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	16	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	19	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	22	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	25	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	32	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	38	Stainless steel A2	3	1	Drill screw	Steel, Aluminium	SQDR
4.2	9.5	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	13	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	16	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	19	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	22	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	25	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	32	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	38	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	45	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	50	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	60	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	16	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	19	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	22	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	25	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	32	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	38	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	45	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	50	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	60	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	70	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	80	Stainless steel A2	3	2	Drill screw	Steel, Aluminium	SQDR
5.5	19	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	22	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	25	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	32	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	38	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	45	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
5.5	50	Gehard staal C1022	3	3	Drill screw	Steel, Aluminium	SQDR
3.9	16	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	19	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	22	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	25	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	32	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
3.9	38	Gehard staal C1022	2	1	Drill screw	Steel, Aluminium	SQDR
4.2	16	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	19	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	22	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	25	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	32	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	38	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	45	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.2	50	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	16	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	19	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	22	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	25	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	38	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	45	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	50	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	60	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	70	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	80	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
5.5	32	Stainless steel A2 with a steel drillpoint	2	3	Drill screw	Steel, Aluminium	SQDR
3.9	16	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	19	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	22	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	25	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	32	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
3.9	38	Gehard staal C1022	3	1	Drill screw	Steel, Aluminium	SQDR
4.2	16	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	19	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	22	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	25	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	32	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	38	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	45	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.2	50	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	16	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	19	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	22	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	25	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	38	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	45	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	50	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	60	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	70	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	80	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
5.5	32	Stainless steel A2 with a steel drillpoint	3	3	Drill screw	Steel, Aluminium	SQDR
4.8	32	Gehard staal C1022	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	32	Stainless steel A2 with a steel drillpoint	2	2	Drill screw	Steel, Aluminium	SQDR
4.8	32	Gehard staal C1022	3	2	Drill screw	Steel, Aluminium	SQDR
4.8	32	Stainless steel A2 with a steel drillpoint	3	2	Drill screw	Steel, Aluminium	SQDR
