0335 Drillmate

The hex head drill screw with drill point no. 5 and a BAZ sealing ring offers powerful and durable fastening. Designed for optimal performance and extra protection in various applications. Drill point no. 5 has an extra long drill point for heavy steel constructions, roof and wall mounting with a drilling capacity (steel) of approx. 12 mm.

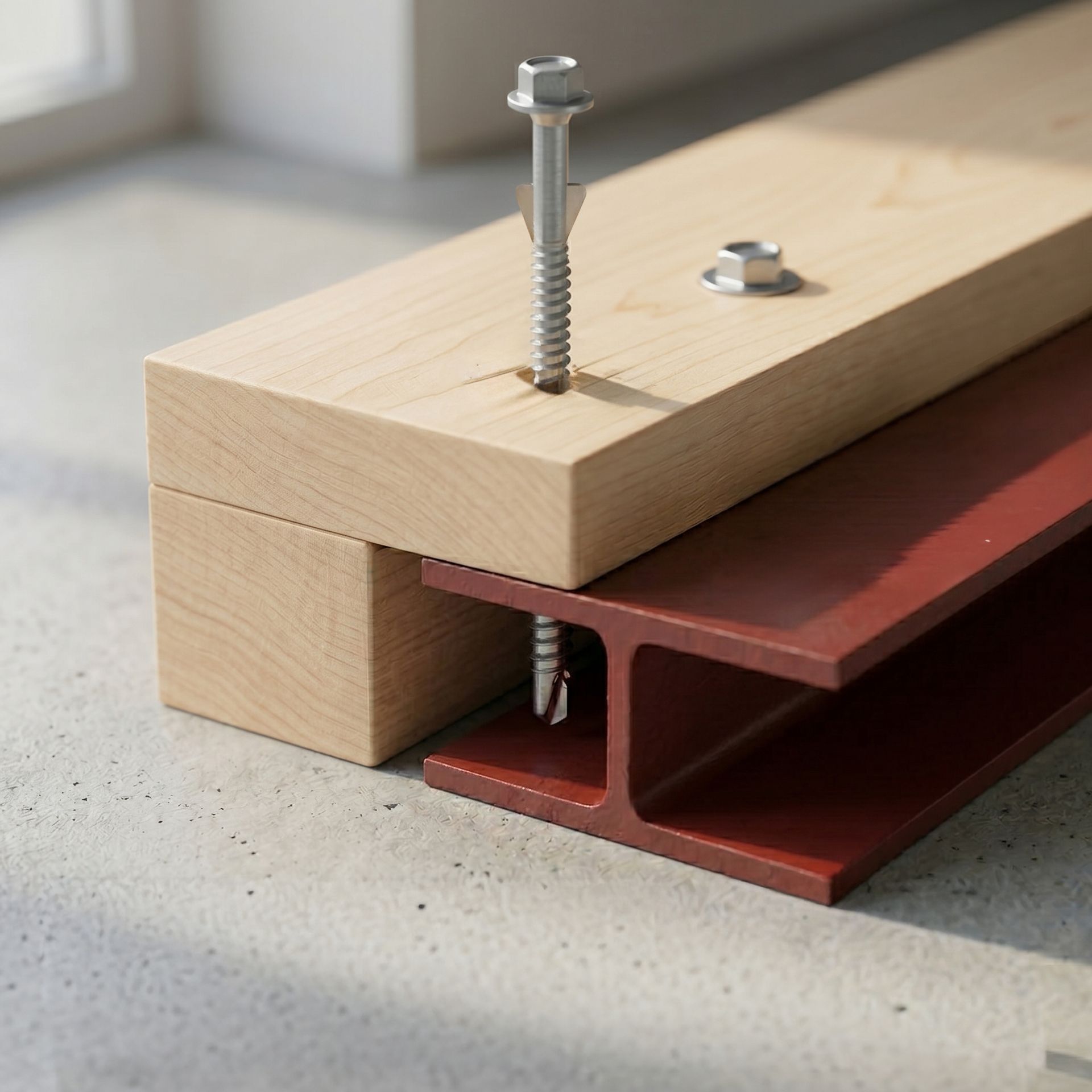

The unique feature of this screw are the reaming wings on the shank, creating a larger hole in the panel. This prevents the panel from being under tension, significantly reducing the risk of damage. Upon contact with steel, the wings break off, anchoring the screw firmly and securely in the subframe.

Product Information

This hexagon head drillscrew with drill point no. 5 and a BAZ sealing washer is designed for powerful and durable fastening. Drill point no. 5 ensures optimal penetration. The BAZ sealing washer provides additional protection against the elements. Ideal for various construction projects where reliability and performance are crucial.

Available Variants (8)

Diameter (mm)	Length (mm)	Clamp Thickness	Drilling capacity	Drill point	Head size	Material	Transmission
6.3	110	27- 62	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	120	37 - 72	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	130	47 - 82	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	150	67 - 102	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	160	77 - 112	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	180	97 - 132	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	200	117 - 152	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
6.3	235	152 - 187	5.0 - 12.0	5	5.16	Gehard staal C1022	Zeskant
