0878 Adapter for Jamb & Soffit Cladding

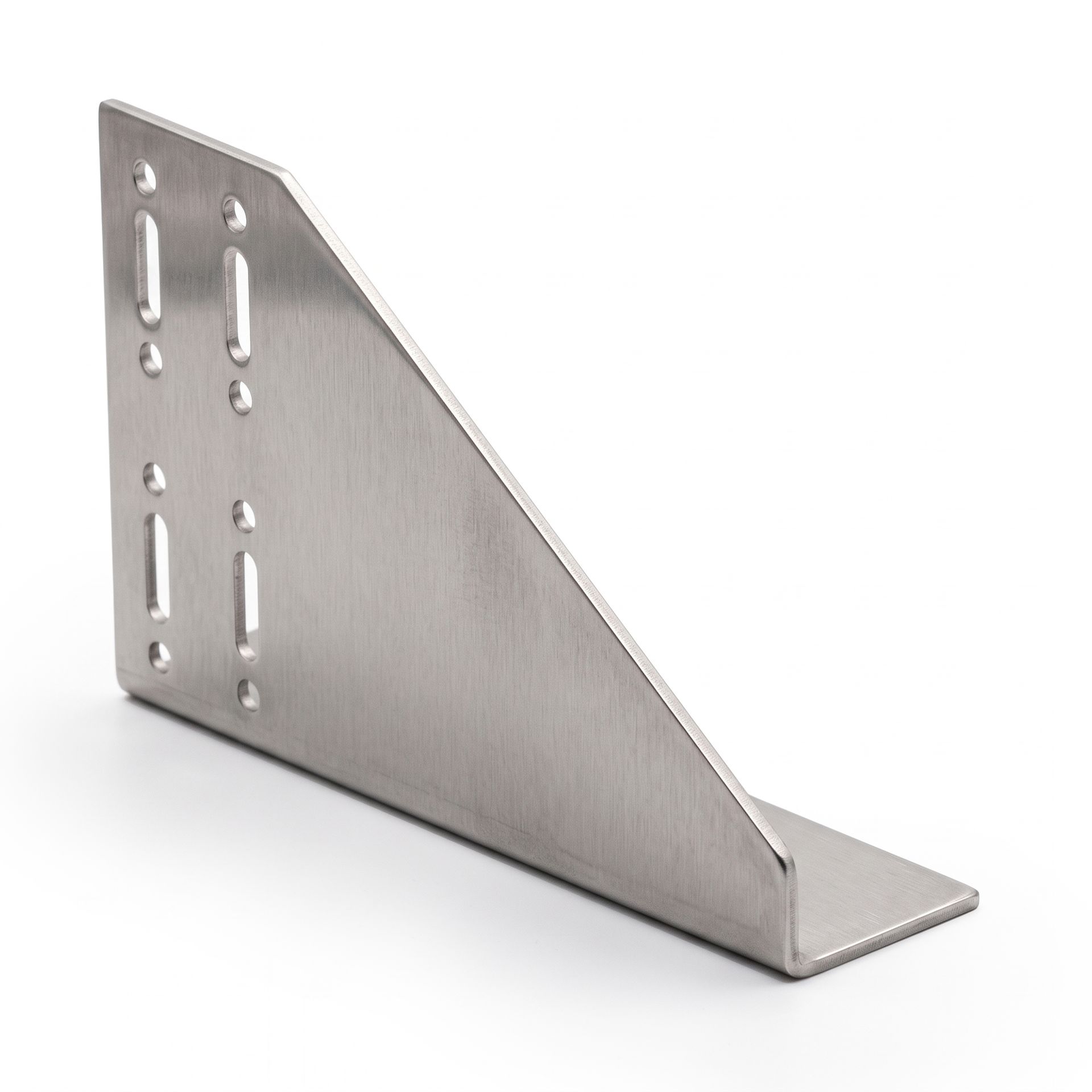

In-house laser-cut 2 mm aluminium adapter for jamb & soffit cladding within the c042 rainscreen system. Custom-engineered support for precise panel alignment with 0848 brackets (40 to 500 mm).
Can be used with
Product Information
Available Variants (13)

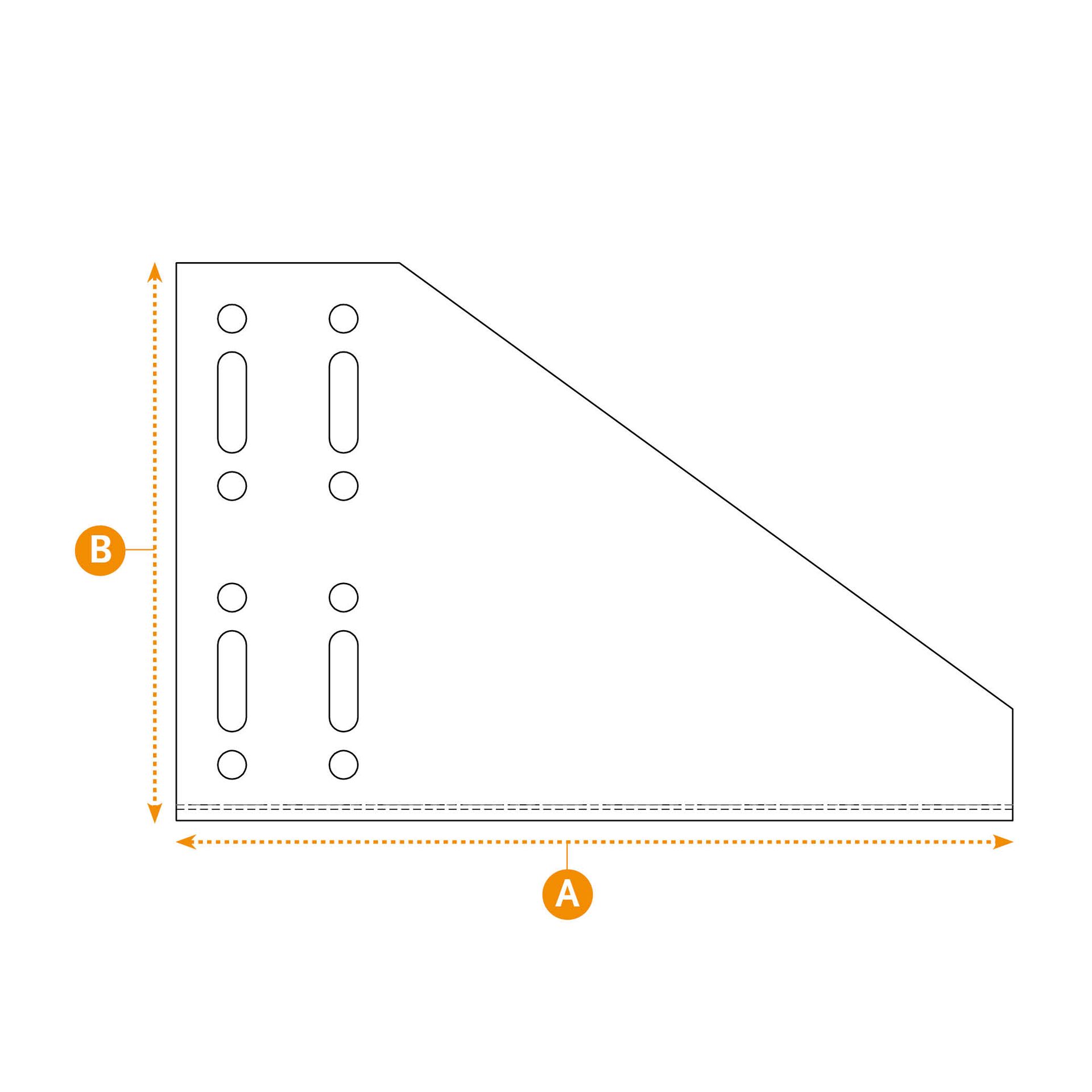

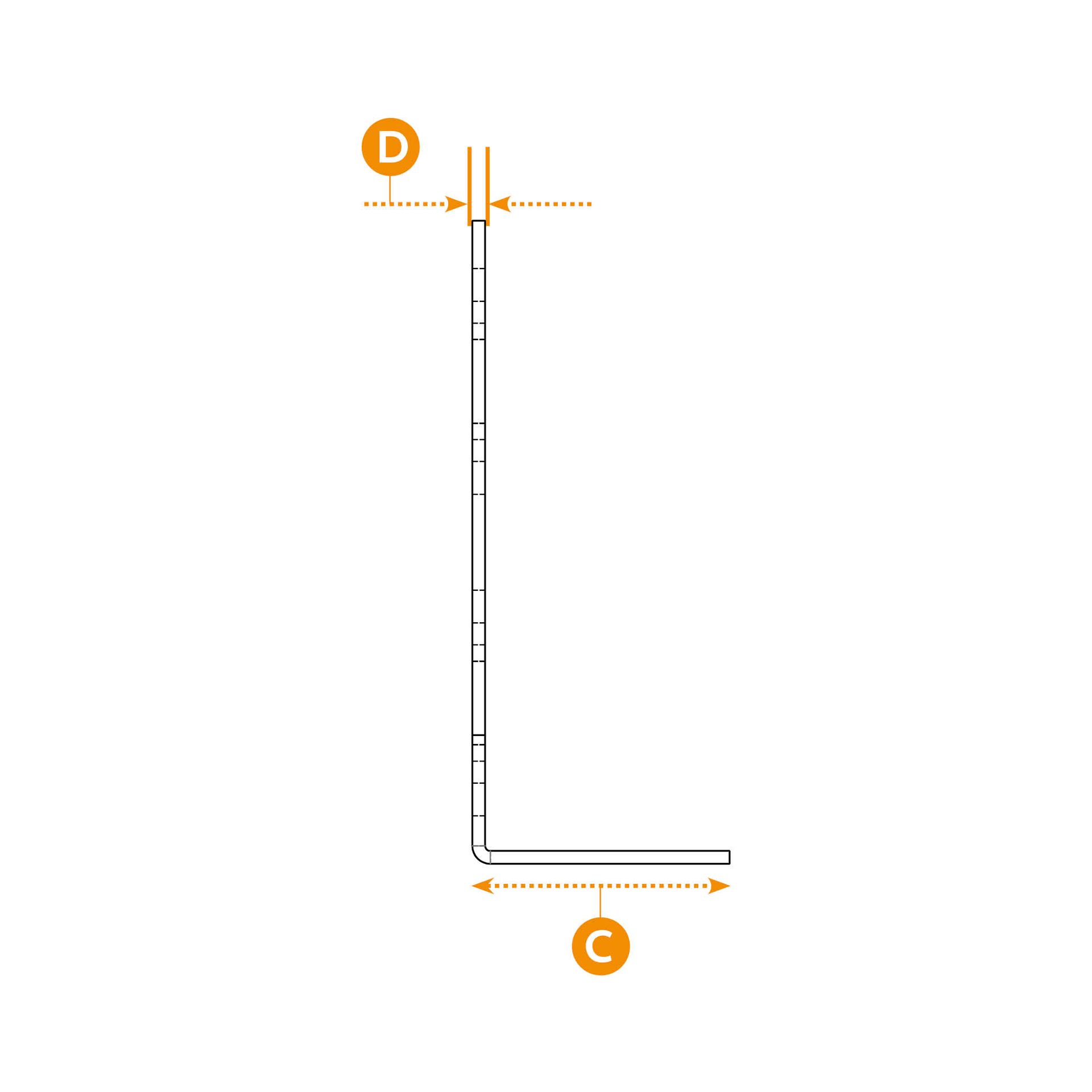

| B (mm) | A (mm) | C (mm) | D (mm) | Material |
|---|---|---|---|---|
| 100 | 40 | 40 | 2 | Aluminium |
| 100 | 80 | 40 | 2 | Aluminium |
| 100 | 120 | 40 | 2 | Aluminium |
| 100 | 160 | 40 | 2 | Aluminium |
| 100 | 200 | 40 | 2 | Aluminium |
| 100 | 240 | 40 | 2 | Aluminium |
| 100 | 280 | 40 | 2 | Aluminium |
| 100 | 320 | 40 | 2 | Aluminium |
| 100 | 360 | 40 | 2 | Aluminium |
| 100 | 400 | 40 | 2 | Aluminium |
| 100 | 440 | 40 | 2 | Aluminium |
| 100 | 480 | 40 | 2 | Aluminium |
| 100 | 520 | 40 | 2 | Aluminium |
